HV-320J FPV Full HD Video Transmitter

HV-320J

FPV Full HD Video Transmitter

HDMI/CVBS to ISDB-T/ISDB-Tb Modulator

100–2500 MHz

HV-320 is the most cost-effective solution to transmit long range HD video for FPV application with digital TV technology. The video input source from either HDMI/DVI or composite (CVBS) is encoded in H.264 streams, modulated with the open industrial standard EN 300-744 DVB-T/ARIB STD-B31 ISDB-T/ABNT NBR 15601 ISDB-Tb*, and then transmitted over cable or air. All DVB-T/ISDB-T/ISDB-Tb compliant receivers**, including SetTopBox, Digital TV, PC/NB USB DTV dongle, or DTV capture card can receive, and watch the video from a HV-320 via the standard coaxial cable or antenna.

100~2500MHz, step size 1KHz · ISDB-T 6MHz · ISDB-T ARIB STD-B31 / ISDB-Tb ABNT NBR 15601

eBay store hides168 ↗ Original product page →

Datasheet — HV-320J

04 · DVB-T Full HD Modulator Box

Features

  • 01 High Performance Wide Frequency Range Support — Direct digital conversion to 100..2500 MHz for excellent signal quality. Professional grade modulation error rate (MER).
  • 02 Flexible Bandwidth Option — In DVB-T mode, 1MHz~8MHz Bandwidth options are supported.
  • 03 UART Digital Data Mux — HV-320 supports UART data mux feature. GPS or aviation data can be multiplexed in the transmitted stream from HV-320’s UART port. Besides audio and video, the receiver can decode the received UART data for further data processing. The communication parameters for the data mux UART port are configurable.
  • 04 Security for anti-eavesdropping — Support both RF layer and TS data layer encryption.

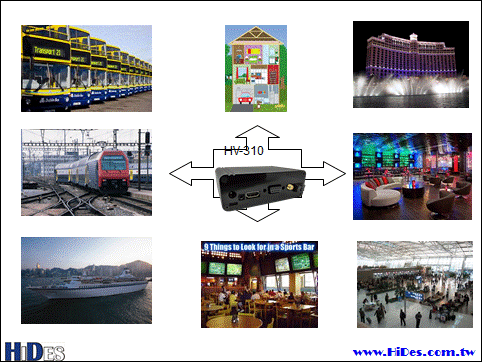

  • 05 Low Cost HD Video Distribution — Compliant to existing HD TV sets, no extra adapter required, and no restriction on the number of receivers. All the peripherals like splitter, amplifier, connector…etc are the same as those for regular TV. In DVB-T mode, 1MHz~8MHz Bandwidth options are supported.
  • 06 Versatile video inputs — Support HDMI/DVI and composite (CVBS) video input.
  • 07 Easy to Configure — Channel number can be configured with the IR RC easily. More advanced configurations can be set from an external host like PC/NB thru serial port interface.
  • 08 Robust, Reliable and Long Distance — Easily transmit 1080p video over a single 3C2V/RG59 cable for at least 500 meters long without adding any repeater. For wireless applications, the line of sight transmission distance may reach 50~100 meters at 0dBm RF radiation power and up to several kilo meters at 30 dBm with an external PA. The real distance depends on the antenna design and receiver quality. Differential RF output is also available for RF signal distribution with twisted pairs (telephone or Ethernet RJ-45) instead of heavy coaxial cables.
  • 09 Daisy-chain Connection (Bus-Topology) — Multiple HV-320’s with different channel configurations can share a single cable. It can dramatically reduce the cable deployment cost and effort.
  • 10 Real time protocol and Low latency — No frame drop in QEF (Quasi-Error-Free) condition, and low transmission latency.

Specifications

General Specifications

Input
Video: CVBS, HDMI 1.3 Audio: Stereo line-in or HDMI PCM audio-in
Compression
Video: H.264 Audio: AAC or MPEG
Resolution — Input (CVBS)
720x480x30I (NTSC, D1) 720x576x25I (PAL, D1)
Resolution — Input (HDMI)
720x480x30I (NTSC, D1) 720x576x25I (PAL, D1) 1280x720x50I/1280x720x50P 1280x720x60I/1280x720x60P 1920x1080x24P 1920x1080x50I/1920x1080x50P 1920x1080x60I/1920x1080x60P
Video Output
Compression: H.264 Frame size: 720x480x30P (NTSC, D1) 720x576x25P (PAL, D1) 1280x720x25P 1280x720x30P 1920x1080x24P 1920x1080x25P 1920x1080x30P Note: the output frame size is the same as the input, no scale-up or scale-down feature supported
Power — HV-320 without PA
5 V or 6~16V DC 1420 mA@5V 470mA@12V
Power — HV-320-PA700 / HV-320-PA900 / HV-320-PA1200 / HV-320-PA2400
5V or 12V DC 2050mA@5V 720mA@12V
Dimension WxDxH
W(105 mm) x D(75 mm) x H(35 mm) (Bare bone PCBA size: 100mmx70mm)
Weight
175g (Bare bone PCBA weight 55g)
Operating Temperature
-10℃ ~ 60℃

Digital TV RF Transmitter Specifications

TV Standard
HV-320E: DVB-T EN-300 744 HV-320J: ISDB-T ARIB STD-B31, ISDB-Tb ABNT NBR 15601
RF connector
50-Ω SMA connector
Bandwidth
HV-320E: 1/2/3/4/5/6/7/8 MHz HV-320J: 6MHz
FFT
2K, 4K, 8K
Code rate
1/2, 2/3, 3/4, 5/6, 7/8
Guard interval
1/4, 1/8, 1/16 or 1/32
Frequency range
100~2500MHz, step size 1KHz
Segment & Layer
HV-320E: n/a HV-320J: 13 Seg or 1 Seg
Time Interleaver
HV-320E: n/a HV-320J: Not supported
RF Output Level — HV-320E/HV-320J (Max)
@177.5 MHz: 6.5 dBm @474 MHz: 6.5 dBm @666 MHz: 6.5 dBm @915 MHz: 5.5 dBm @1250 MHz: 5.5 dBm @2450 MHz: 0 dBm
RF Output Level — HV-320E-PA700 / HV-320J-PA700
500~800MHz +20 dBm (with 500~800MHz Power Amplifier)
RF Output Level — HV-320E-PA900 / HV-320J-PA900
800~950MHz +20 dBm (with 900MHz Power Amplifier)
RF Output Level — HV-320E-PA1200 / HV-320J-PA1200
1200~1350Mz +20 dBm (with 1.2G Power Amplifier)
RF Output Level — HV-320E-PA2400 / HV-320J-PA2400
2400~2500Mz +20 dBm (with 2.4G Power Amplifier)
Digital Gain/Attenuator for Fine Tuning
Range: +0dB~-25dB, Step size 1dB Default: -5dB (Default: -17dB for HV-320-PA2400)
MER
Typically, @-5 dB attenuation by ADRF6755 >38dB@V-band >38dB@470-950 MHz >35dB@950-1900MHz >33dB@1900-2500MHz (>25dB with 700M/900M/1.2G/2.4G +20 dBm output PA)
Spectrum Shoulder (Adjacent channel)
>48dB
Phase noise
<-92dBc @ 10kHz
Carrier Suppression
>42dB
  • HV-320E supports EN 300-744 DVB-T modulation while HV-320J supports ARIB STD-B31 ISDB-T/ABNT NBR 15601 ISDB-Tb modulation.
  • HV-320 supports only H.264 video encoding, so the receiver should be able to decode H.264 stream while old DVB-T/ISDB-T TV’s may not.
  • There could be MER loss in high gain/attenuation level.
  • Specifications are subject to change without prior notice.

Order information

HV-320E
DVB-T (H.264 only), channel frequency range 100-2500MHz
HV-320E-PA700
DVB-T (H.264 only), channel frequency range 100-2500Hz. With 500~800 MHz (TVWS) band power amplifier (>20dBm output)
HV-320E-PA900
DVB-T (H.264 only), channel frequency range 100-2500Hz. With 800~950MHz band power amplifier (>20dBm output)
HV-320E-PA1200
DVB-T (H.264 only), channel frequency range 100-2500Hz. With 1.2G band power amplifier (>20dBm output)
HV-320E-PA2400
DVB-T (H.264 only), channel frequency range 100-2500Hz. With 2.4G band power amplifier (>20dBm output)
HV-320J
ISDB-T (H.264 only), channel frequency range 100-2500MHz
