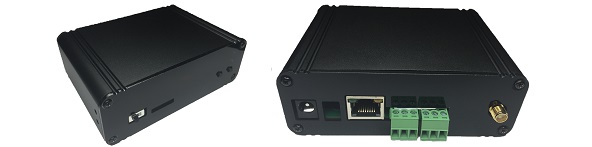

EOA-100 Ethernet-over-Air Adaptor




Ref. Price for a link (2pcs): US$399/ $499


EOA-100 Ethernet-over-Air adaptor is designed with the IT9560 COFDM transceiver chips. EOA can be used to extend Ethernet wirelessly.
The nature of robust COFDM technology enables versatile long range wireless applications, like UAV’s,
The EOA is built in with 900MHz band 100mW power amplifier, conducted RF power output @+20dBm. It’s optional (and easy) to disable the on-board power amplifier, and redirect the RF to an external power amplifier via the two by-pass SMA connectors.
EoA supports both 1-to-1 (point to point) and many-to-many communication modes.
Besides transparent Ethernet wireless link, the board can be configured as a transparent UART (RS232/RS485) link. One RS-232 and one RS-485 are supported simultaneously at up to 921K bps data rate.

System Features

  • COFDM technology
  • Configurable transmission parameters including
    • frequency bandwidth, code rate , guard interval, constellation
  • Long range transmission
  • High resilience to interference, echo and Doppler Effect (high mobility)
  • Ease of installation
  • Transparent mode support for either Ethernet or UART (RS232/RS485) link*
  • Guarantee throughputs >4Mbps @16QAM mode
  • POE (Power On Ethernet) option available

Order Information:


Model

Features

EOA-100

Ethernet Over Air Adaptor
Channel frequency range 70-950MHz
Build-in 100mW PA for 850~950MHz band

EOA-100-POE

Ethernet Over Air Adaptor
Channel frequency range 70-950MHz
Build-in 100mW PA for 850~950MHz band
Built-in POE (Power over Ethernet) power picker



Configuration Examples

Transparent Ethernet Link
eoa1

Transparent RS232/RS485 Link
eoa2


EOA-100 Specifications

Summary: Throughputs

  • True throughput: up to 6 Mbps (Equivalents to WiFi line rate >15 Mbps)
  • RS232/RS485 supports up to 921000bps

*There is one transparent UART port available simultaneously in transparent Ethernet mode.


Summary: Range

  • Throughputs : 6Mbps(64QAM): TBD
  • Throughputs : 4Mbps(16QAM): TBD
  • Throughputs : 2Mbps(QPSK): TBD



Table 1 . Parameters


Parameters

link

RF Frequency

70~950 MHz
(Tuning step: 1KHz)

Bandwidth

1/2/4 MHz

Modulation

COFDM

FFT

64

Constellation

QPSK/16QAM/64QAM

Code Rate (CR)

1/2,2/3,3/4

Guard Interval (GI)

1/4  (7.1 us)

Output power

900 MHz~950MHz
w/ built-in 900 MHz PA

>+21 dBm

VHF (70~430 MHz)
without PA

-2~-4 dBm

UHF (430~950 MHz)
without PA

-4~-8 dBm

Digital Attenuator

Range 0~-15 dB, step size 1dB

Table 2. Sensitivity @77 MHz, MER = 26.5 dB, Packet Error Rate 1/1000


Mode

Pmin

QPSK, CR 1/2

-87 dBm

QPSK, CR 3/4

-87 dBm

16QAM, CR 1/2

-87 dBm

16QAM, CR 3/4

-86.5 dBm

64QAM, CR 1/2

-81.5dBm

64QAM, CR 3/4

-80 dBm

Table 3. Sensitivity @918 MHz, MER = 19.5 dB, Packet Error Rate 1/1000


Mode

Pmin

QPSK, CR 1/2

-90 dBm

QPSK, CR 3/4

-89.5 dBm

16QAM, CR 1/2

-89dBm

16QAM, CR 3/4

-88 dBm

64QAM, CR 1/2

N/A

64QAM, CR 3/4

N/A


System Specifications




Data & Power



Data Rate

See “EoA Specifications” for details
guarantee throughput up to 6 Mbps
(Wifi equivalent line rate 15Mbps)

Connectors

RF: SMA 50 Ohm
Ethernet: RJ 45
RS232: Euro terminal ETB-3.81-3P-90D
RS485: Euro terminal ETB-3.81-3P-90D

Installation and management

Plug-and-play installation;
Local LED management display
Buttons for channel selection
SD card for system configuration and firmware update

Power Consumption

DC 12V 450mA

Power Adaptor

DC 12V 1A or above recommended (Φ 2.0mm)

Optional POE (Power over Ethernet) supported




General



Display and indicators

LED indicators are located on the top panel and RJ45 connector
Network indicators: Coax link, Ethernet link/activity x2

Compliance

IEEE 802.3af, IEEE 802.3at, RoHS.

Operating conditions

-10 °C to 50 °C (14 °F to 122 °F)
Humidity max. 95% RH (non-condensing)

Storage conditions

-40 °C to 74 °C (-40 °F to 165 °F)

Dimensions

100 x 70 x 17 mm (3.9 x 2.8 x 0.7 in)

Weight

60 g (0.13 lb)
