HV-122
Full HD 2-Way Diversity Digital TV Receiver
TV/1.2GHz/2.4GHz bands support — For HAM and FPV
170–862 MHz / 2100–2550 MHz / 170–2700 MHz

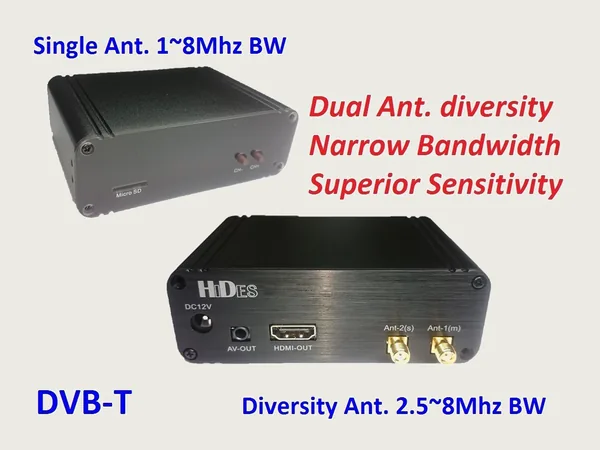

HV-122 is a 1080 Full HD diversity receiver box which receives and decodes DVB-T (ETSI EN 300 744) HD/SD terrestrial broadcast signals, with HDMI and Composite (CVBS) video output. It is designed with 2-way diversity antenna reception, which can enhance high mobility support and mitigate multi-path effect.
170~862 MHz (HV-122) · 1/1.5/2/2.5/3/4/5/6/7/8 MHz · DVB-T ETSI EN 300 744
Datasheet — HV-122
05 · DVB-T Full HD Receiver Box
Features
- 01 Standalone Digital DVB-T receiver
- 02 Support 1080 Full HD H.264 and MPEG2 decoding
- 03 Frequency Band Support — HV-122-TV 170~860MHz · HV-122-2.4G 2100~2550MHz · HV-122-A 170~2700MHz (sensitivity is ~20dB less at 170~700MHz)
- 04 Two Antenna SMA connectors
- 05 Composite video output / Stereo Analog (L/R) output
- 06 Digital HDMI audio and video output
- 07 On-Screen Display Menu
- 08 Automatic or manual channel scan
- 09 1/1.5/2/2.5/3/4/5/6/7/8 MHz Bandwidth support
- 10 12V active antenna supported (up to 500mA)
- 11 Demultiplex UART data in received TS transmitted by HiDes transmitter.
- 12 Decrypt encrypted TS data transmitted by HiDes transmitter.
- 13 UART control interface for external host — Besides the remote controller, HV-122 can be configured and controlled thru its UART port by an external host. HV-122 can also decode the mux'ed UART data in received streams and output it thru its local UART port.
- 14 Channel bandwidth — Besides standard TV channel bandwidth (5/6/7/8MHz), HV-122 can tune 1/1.5/2/2.5/3/4 MHz bandwidth channels.
- 15 Band options — Depending on the model options, HV-122 supports standard TV-band (170-860MHz), 2.4G-band (2100~2550MHz), or All-band (170~2700MHz).
Specifications
Specifications — RF Inputs
- Frequency
- HV-122: 170~862 MHz; HV-122-2.4G: 2100~2550MHz*; HV-122-A: 170~2700MHz**
- Bandwidth — Single Antenna
- 1/1.5/2/2.5/3/4/5/6/7/8 MHz
- Bandwidth — Diversity Antenna
- 2.5/3/4/5/6/7/8 MHz
- Demodulation
- COFDM (ETSI EN 300 744 DVB-T)
- FFT mode
- 2K, 4K, 8K
- Constellation
- QPSK, 16QAM, 64QAM
- Guard interval
- 1/4, 1/8. 1/16, 1/32
- Inner coding rate
- 1/2, 2/3, 3/4, 5/6, 7/8
RF Performance (single antenna only)
- Pmax
- >+5 dBm
- Pmin (FFT:2K, 16QAM, CR:2/3, GI:1/8) — 1 MHz
- <-99 dBm
- Pmin (FFT:2K, 16QAM, CR:2/3, GI:1/8) — 1.5 MHz
- <-98 dBm
- Pmin (FFT:2K, 16QAM, CR:2/3, GI:1/8) — 2 MHz
- <-96 dBm
- Pmin (FFT:2K, 16QAM, CR:2/3, GI:1/8) — 2.5 MHz
- <-95 dBm
- Pmin (FFT:2K, 16QAM, CR:2/3, GI:1/8) — 3 MHz
- <-95 dBm
- Pmin (FFT:2K, 16QAM, CR:2/3, GI:1/8) — 4 MHz
- <-94 dBm
- Pmin (FFT:2K, 16QAM, CR:2/3, GI:1/8) — 5 MHz
- <-92 dBm
- Pmin (FFT:2K, 16QAM, CR:2/3, GI:1/8) — 6 MHz
- <-91 dBm
- Pmin (FFT:2K, 16QAM, CR:2/3, GI:1/8) — 7 MHz
- <-90 dBm
- Pmin (FFT:2K, 16QAM, CR:2/3, GI:1/8) — 8 MHz
- <-90 dBm
Video
- Formats
- MPEG-2 MP@ML, MPEG-2 MP@HL, MPEG4 AVC/H.264 MP@L4.1, MPEG4 AVC/H.264 HP@L4.1
- Output
- Digital HD video, CVBS
- Aspect ratio
- 4:3 and 16:9 (Letter Box, Pan & Scan)
Audio
- Decode
- MPEG-1 layer I/II, MP3, MPEG-2 layer II, MPEG-2 AAC, MPEG-4 HE-AAC
- Sampling rate
- 32KHz, 44.1KHz, 48KHz
- Output
- Stereo line-out and HDMI digital output
Front panel
- IR remote
- 7-segment LED display: Status
- LED: Power and Channel lock status
Rear panel
- Power-in (DC Jack or Micro-USB)
- Two SMA RF-in
- CVBS/Audio-L/Audio-R Jack
- Digital HD video
General
- Power Supply — HV-122-TV
- 12 VDC, Typical Consumption 5.4 Watt (450mA)
- Power Supply — HV-122-2.4G / HV-122-A
- 12 VDC, Typical Consumption 6.48 Watt (540mA)
- Dimension
- W(105 mm) x D(75 mm) x H(35 mm) (Bare bone PCBA size: 100mm x 70mm)
- Weight
- 185g (Bare bone PCBA weight 65g)
- There is a saw filter in the RF front end. The saw filter limits the reception range but minimize ACI (adjacent channel interference).
- When the saw filter removed, full band range is supported but poorer ACI. The sensitivity is ~20dB less at 170~700MHz.
- Specifications are subject to change without prior notice.
Order information
- HV-122
- RF-in filter for >1GHz band: N/A. Frequency band supported: 170~862 MHz
- HV-122-2.4G
- RF-in filter for >1GHz band: 2.4G Saw Filter*. Frequency band supported: 2100~2550MHz*
- HV-122-A
- RF-in filter for >1GHz band: N/A. Frequency band supported: 170~2700MHz**
