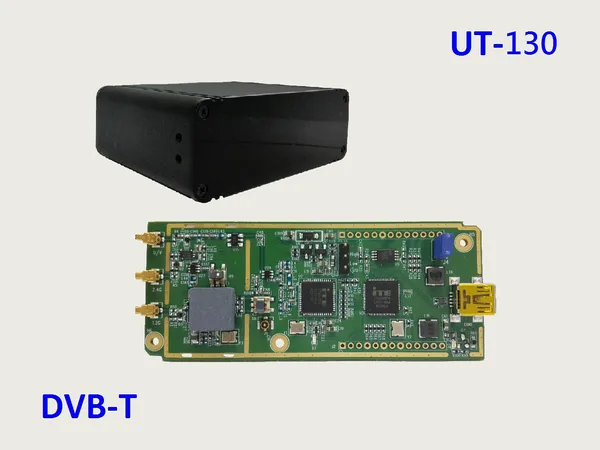

UT-130
USB DVB-T 4-band Receiver
100~2500 MHz, 2~8 MHz bandwidth
100~2500 MHz
The UT-130 is a USB based DVB-T demodulator covering four bands without an extra down converter, including the standard TV VHF/UHF band (100MHz~950MHz), the 1.2GHz band and the 2.4GHz band. Channel bandwidth is software configurable between 2/3/4 MHz and 5/6/7/8 MHz.
100~950 / 1200~1350 / 2350~2500 MHz · 2/3/4 or 5/6/7/8 MHz bandwidth · DVB-T (EN 300-744)
Datasheet — UT-130
02 · DVB-T Receiver Adaptor
Features
- 01 USB based demodulator with support for EN 300-744 DVB-T reception.
- 02 No extra down converter needed, direct support for wide frequency range reception, including standard TV VHF/UHF (100MHz~950MHz) band, 1.2GHz band, and 2.4GHz band.
- 03 Flexible channel bandwidth support, 2/3/4MHz or 5/6/7/8 MHz (software configurable)
- 04 Host requirements — CPU: Intel, AMD, ARM, MIPS · 128MB RAM of system memory or above · Higher CPU and memory required if DVB-T audio/video decoding is needed · One available USB2.0 or 1.1 port
Specifications
General Specifications
- RF connector
- Three 50-Ω SMA (female) connectors, for standard TV band 100MHz~950 MHz, 1.2GHz band, 2.4GHz band (IPEX on-board)
- Bandwidth
- 5/6/7/8 MHz or 2/3/4MHz, configurable by software
- FFT
- 2K, 4K, 8K
- Constellation
- 64QAM/16QAM/QPSK
- Code rate
- 1/2, 2/3, 3/4, 5/6, 7/8
- Guard interval
- 1/4, 1/8, 1/16 or 1/32
- Frequency range
- 100~950MHz / 1200~1350MHz / 2350~2500MHz
- RF-in Pmax
- -10 dBm (Recommended 2.4GHz < -15 dBm, 1.2GHz < -25 dBm)
- USB port
- USB 2.0 or USB 1.1
- Power
- 5V DC, USB bus power / 177MHz: 460mA / 666MHz: 480mA / 1.2G: 500mA / 2.4G: 470mA
- Dimensions
- Bare bone 82 x 35mm / Box W(105 mm) x D(75 mm) x H(35 mm)
- USB 1.1 can only support 3~5 Mbps stream data rate.
