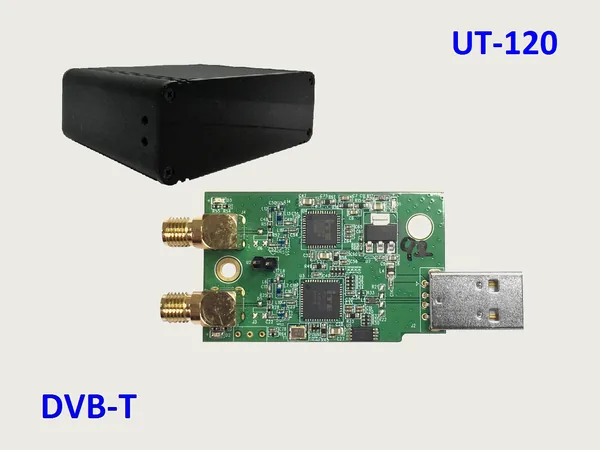

UT-120
USB DVB-T Diversity Receiver
Dual-tuner antenna diversity for mobile reception
50~950 MHz
The UT-120 is a USB based demodulator with support for EN 300-744 DVB-T reception, covering Worldwide Free to Air Digital Terrestrial (DVB-T) receptions at 5/6/7/8 MHz bandwidth. It offers superior sensitivity with dual tuner antenna diversity technology for mobile reception with Doppler enhancement.
50~950 MHz · 5/6/7/8 MHz bandwidth · DVB-T (EN 300-744), 2-way diversity
Datasheet — UT-120
02 · DVB-T Receiver Adaptor
Features
- 01 USB based demodulator with support for EN 300-744 DVB-T reception. It can support Worldwide Free to Air Digital Terrestrial (DVB-T) Receptions (5/6/7/8 MHz bandwidth)
- 02 Superior sensitivity with dual tuner antenna diversity technology for mobile reception with Doppler enhancement.
- 03 Standard Windows DVB-T BDA driver provided
- 04 Windows Media Center compatible DVB-T TV tuner
- 05 Receiving frequency range 50~950MHz.
- 06 Optional Picture-in-Picture mode that enables two onboard receivers working independently for tuning different channels.
- 07 Applications — Mobile/Portable reception · UAV/UGV · FPV · FPU/ENG · Real-time AV reception in the stadium, e.g. Sports, Racing, Concert. · ccHDtv surveillance DVR · Any Commercial DVB-T Rx · Picture-in-Picture reception
- 08 Host requirements — CPU: Intel, AMD, ARM, MIPS · 128MB RAM of system memory or above · Higher CPU and memory required if DVB-T audio/video decoding is needed · One available USB2.0 or 1.1 port
Specifications
General Specifications
- RF connector
- Two 50-Ω SMA (female) connectors
- Bandwidth
- 5/6/7/8 MHz
- FFT
- 2K, 4K, 8K
- Constellation
- 64QAM/16QAM/QPSK
- Code rate
- 1/2, 2/3, 3/4, 5/6, 7/8
- Guard interval
- 1/4, 1/8, 1/16 or 1/32
- Frequency range
- 50~950MHz
- USB port
- USB 2.0 or USB 1.1
- Dimensions
- Bare bone 50 x 32mm / Box W(105 mm) x D(75 mm) x H(35 mm)
- USB 1.1 can only support 3~5 Mbps stream data rate.
- To enable the diversity function, two antennas should be spaced at least 70cm or more to increase the odds to receive better signal from either of the antennas.
