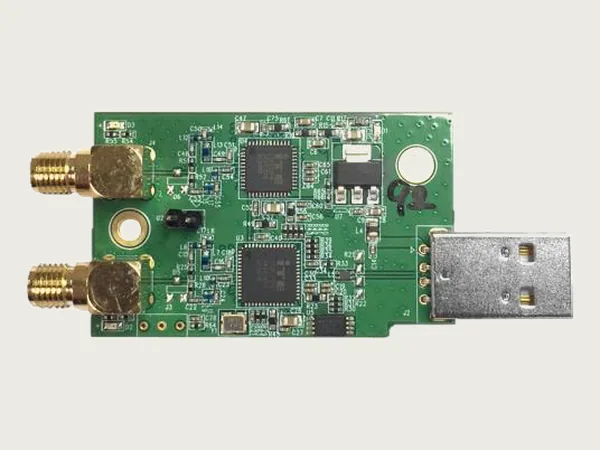

UT-120EVB
DVB-T Diversity Receiver Evaluation Board
IT9137+IT9133 USB diversity receiver dongle · Core chips: ITE IT9137 and IT9133
50~950 MHz
An evaluation board for the ITE IT9137 and IT9133 core chips, implementing a USB DVB-T diversity receiver dongle. The kit ships with complete hardware reference schematics, chip documentation, driver sources and sample code for developers.
50~950 MHz · 5/6/7/8 MHz bandwidth · ITE IT9137 + IT9133 diversity
Datasheet — UT-120EVB
02 · DVB-T Receiver Adaptor
Features
- 01 USB based demodulator with support for EN 300-744 DVB-T reception. It can support Worldwide Free to Air Digital Terrestrial (DVB-T) Receptions (5/6/7/8 MHz bandwidth)
- 02 Superior sensitivity with dual tuner antenna diversity technology for mobile reception with Doppler enhancement.
- 03 Receiving frequency range 50~950MHz.
- 04 Optional Picture-in-Picture mode that enables two onboard receivers working independently for tuning different channels.
- 05 Contents — One evaluation board · Complete hardware reference schematics design (both Orcad and PDF files) · Core chip datasheet · Programming guide, API’s and sample codes · Linux driver source codes · Windows BDA driver and sample Windows player (binary files only)
