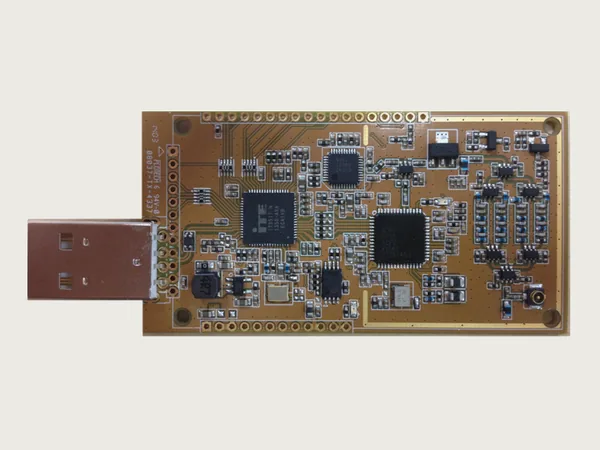

UT-210EVB
USB DVB-T/ISDB-T Modulator Evaluation Board
Core chips: ITE IT9518, ADI ADRF6755
100–2500 MHz
Evaluation board for the UT-210 USB DVB-T/ISDB-T modulator, built on the ITE IT9518 and ADI ADRF6755 core chips. The kit ships with complete hardware reference schematics, the core chip datasheet, drivers and SDKs for Windows and Linux, so developers can bring up their own design.
100–2500 MHz · 1/2/3/4/5/6/7/8 MHz bandwidth · ITE IT9518 + ADI ADRF6755
Datasheet — UT-210EVB
03 · ISDB-T/Tb Modulator Adaptor
Features
- 01 USB based modulator with support for EN 300 744 DVB-T and ARIB STD-B31 ISDB-T/ABNT NBR 15601 ISDB-Tb transmission.
- 02 Powered from the USB bus, so no external power adapter is required.
- 03 Full hardware modulation, no host CPU computation required.
- 04 Professional grade modulation error rate (MER).
- 05 Direct digital conversion to 100..2500 MHz for excellent signal quality — Standard 1/2/3/4/5/6/7/8 MHz bandwidth · ISDB-T Layer mode supported: 1-layer (13-seg) and 2-layer (12+1 seg) · No time-interleaver support in ISDB-T mode · Programmable digital attenuator
- 06 Contents — One evaluation board with, Complete hardware reference schematics design (both Orcad and PDF files) · Core chip datasheet · Programming guide, API's and sample codes · Linux driver, API/SDK and testkit source codes · Windows driver · Windows API/SDK and testkit with source codes · Windows stream player (binary files only)
Availability varies by model — current-production gear is in the eBay store, and every page links to its original write-up on the old site. Original product page →
