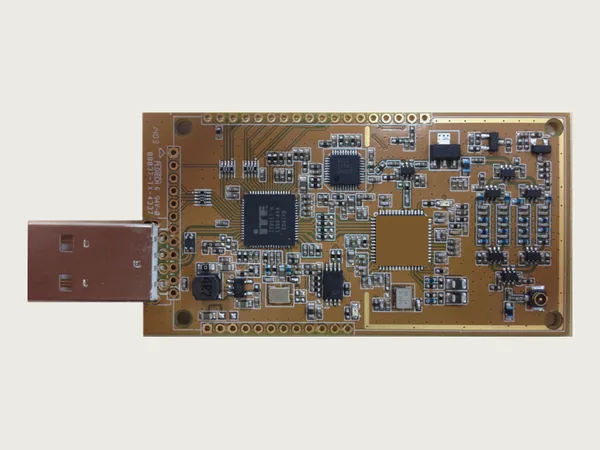

UT-211EVB
USB DVB-T/ISDB-T Modulator Evaluation Board
Core chip: ITE IT9517
70–950 MHz and 1090–1450 MHz
Evaluation board for the UT-211 USB DVB-T/ISDB-T modulator, built on the ITE IT9517 core chip. The kit ships with complete hardware reference schematics, the core chip datasheet, drivers and SDKs for Windows and Linux, so developers can bring up their own design.
70–950 MHz, 1090–1450 MHz · 1/2/3/4/5/6/7/8 MHz bandwidth · ITE IT9517
Datasheet — UT-211EVB
03 · ISDB-T/Tb Modulator Adaptor
Features
- 01 USB based modulator with support for EN 300 744 DVB-T and ARIB STD-B31 ISDB-T/ABNT NBR 15601 ISDB-Tb transmission.
- 02 Powered from the USB bus, so no external power adapter is required.
- 03 Full hardware modulation, no host CPU computation required.
- 04 Direct digital conversion to 70~950 MHz and 1090~1450 MHz.
- 05 Standard 1/2/3/4/5/6/7/8 MHz bandwidth.
- 06 ISDB-T Layer mode supported: 1-layer (13-seg) and 2-layer (12+1 seg).
- 07 No time-interleaver support in ISDB-T mode.
- 08 Programmable digital attenuator.
- 09 Contents — One evaluation board with, Complete hardware reference schematics design (both Orcad and PDF files) · Core chip datasheet · Programming guide, API's and sample codes · Linux driver, API/SDK and testkit source codes · Windows driver · Windows API/SDK and testkit with source codes · Windows stream player (binary files only)
